What is the over - current capability of a Three Phase Current Transformer?

What is the over - current capability of a Three - Phase Current Transformer?

As a supplier of three - phase current transformers, I often encounter inquiries about the over - current capability of these essential electrical devices. In this blog, I will delve into the concept of over - current capability, its significance, and how it relates to our three - phase current transformers.

Understanding Three - Phase Current Transformers

Before we discuss over - current capability, let's briefly review what a three - phase current transformer is. A three - phase current transformer is a type of instrument transformer used in electrical power systems. Its primary function is to step down the high - current levels in a three - phase electrical circuit to a lower, measurable current that can be safely used by instruments such as ammeters, wattmeters, and protective relays.

These transformers play a crucial role in power distribution and monitoring. They ensure that electrical measurements are accurate and that protective devices can operate effectively to safeguard the electrical system from faults and overloads.

Over - Current Capability Defined

The over - current capability of a three - phase current transformer refers to its ability to handle currents that exceed its rated current for a specified period without suffering permanent damage or significant degradation in performance. In other words, it is a measure of how much extra current the transformer can withstand before it fails or its accuracy is compromised.

Over - current situations can occur due to various reasons, such as short - circuits, motor starting, or sudden load changes in the electrical system. A transformer with a high over - current capability can continue to function properly during these transient events, providing reliable measurements and protection.

Factors Affecting Over - Current Capability

Several factors influence the over - current capability of a three - phase current transformer:

Core Material

The core material of the transformer plays a vital role in determining its over - current performance. Different core materials have different magnetic properties, such as saturation characteristics. A core material with a high saturation flux density can handle higher currents before saturating. For example, some modern transformers use high - quality silicon steel cores, which offer good magnetic properties and can withstand relatively high over - currents.

Winding Design

The design of the transformer windings also affects its over - current capability. The number of turns, wire gauge, and winding configuration all contribute to the transformer's ability to handle extra current. A well - designed winding can distribute the current evenly and reduce the risk of overheating during over - current events.

Cooling Mechanisms

Effective cooling is essential for a transformer to handle over - currents. Transformers with efficient cooling systems, such as oil - cooled or air - cooled designs, can dissipate heat more effectively. This helps to prevent the transformer from overheating and damaging its insulation, which could lead to a failure.

Importance of Over - Current Capability

The over - current capability of a three - phase current transformer is of utmost importance in electrical power systems. Here are some key reasons:

Protection of Electrical Equipment

During over - current events, the transformer needs to provide accurate current measurements to protective relays. These relays are responsible for detecting faults and isolating the affected parts of the electrical system. If the transformer saturates or fails during an over - current situation, the protective relays may not operate correctly, leading to potential damage to electrical equipment and even posing a safety hazard.

System Reliability

A transformer with a high over - current capability enhances the overall reliability of the electrical system. It can withstand transient over - currents without interrupting the normal operation of the system. This is particularly important in critical applications, such as power plants, industrial facilities, and data centers, where any downtime can result in significant financial losses.

Safety

Ensuring the over - current capability of the transformer is crucial for the safety of personnel working in the electrical system. By providing accurate current measurements and reliable protection, the transformer helps to prevent electrical accidents and fires.

Our Three - Phase Current Transformers and Over - Current Capability

At our company, we offer a wide range of three - phase current transformers with excellent over - current capabilities. Our High Accuracy Three Phase Current Transformer is designed to provide accurate measurements even under over - current conditions. It uses high - quality core materials and advanced winding designs to ensure reliable performance.

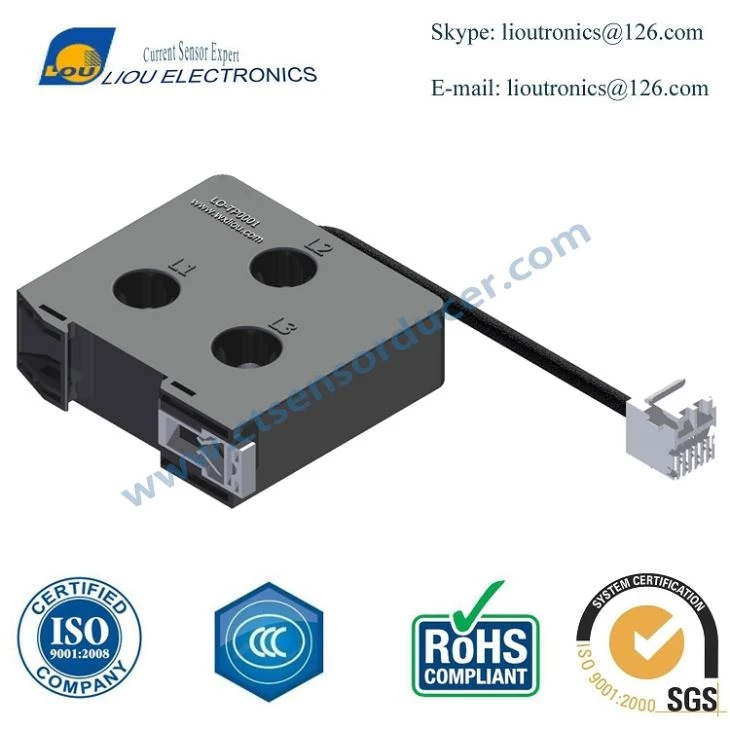

Our Class 0.1 Three Phase Current Transformer is another product that offers high over - current tolerance. It is suitable for applications where high accuracy and reliability are required, such as metering and protection in power systems.

In addition, our Three Phase Current Transformer 1: 2000 is designed to handle high - current ratios and has a robust over - current capability. It is ideal for use in large - scale electrical systems, such as substations and industrial power distribution networks.

Determining the Right Over - Current Capability

When selecting a three - phase current transformer, it is essential to consider the specific requirements of your electrical system. Factors such as the maximum expected over - current, the duration of the over - current event, and the accuracy requirements should all be taken into account.

Our technical team is available to assist you in choosing the right transformer with the appropriate over - current capability for your application. We can provide detailed information about the performance characteristics of our products and help you make an informed decision.

Conclusion

The over - current capability of a three - phase current transformer is a critical factor in ensuring the reliable operation of electrical power systems. It allows the transformer to handle transient over - currents without compromising its performance or causing damage. At our company, we are committed to providing high - quality three - phase current transformers with excellent over - current capabilities.

If you are in the market for a three - phase current transformer and need to discuss your requirements, we encourage you to contact us. Our team of experts is ready to assist you in finding the right solution for your electrical system.





•
