12/24/35kv Big Capacity Pad Mounted Transformer

Nowadays, we have been seeking our best to become certainly one of the most effective exporters in our discipline to meet shoppers more require for high accuracy split core current transformer CT, zero phase micro current transformer, Current Transformer For Energy Meter. We always respect every employee and are committed to providing a fair and ethical workplace for all of them. Relying on our solid strength and good reputation, we constantly strive to strengthen internal management and strict quality supervision, establish a perfect service system, so as to sell the best and best products to customers. Achievements cannot satisfy us, and honors cannot stop us.

Introduction

In the electrical systems always exists the possibility of having shutdowns due to over currents or short circuits produced by operation mistakes, ambient conditions, lack of maintenance or atmospheric discharges. Ground fault it occurs when one of the system phases get on direct contact to ground or to any metallic part that is grounded. The ground fault has its origin on different ways but the more common are reduced insulation, physical damages to insulation system or excessive transient or steady-state voltage stresses on insulation. These problems can be produced due to moisture , atmospheric contamination, insulation deterioration, mechanical stresses, etc. Although the situations mentioned before can be avoided following a good maintenance Schedule, always exists the latent risk of a fault, commonly during the installation or major maintenance to equipment.

Features

• Frequency Range: 50-400Hz

• Over Load withstand: 1.2 x rated current continuously

• AC isolation resistance: 5.0KV for 60s

• Rigid housing case with UL® 94V-0 polycarbonate

• Safety standard: IEC/EN60044-1

• Nominal phase angle error and

Nominal linearity error: Conform IEC61869-2

                    ConformIEC60044-1

• Max. Operation voltage: AC660V

• Thermal Insulation Class: Class B

• Humidity: Up to 95%RH (Non-condensing)

Description

· Close to zero load shift

· Excellent balance properties

· Precision output voltage

· Minimal thermal variance

· RoHS compliant

· Smaller volume, lighter weight

· Perfect protection, delicate structure for convenient installing

· Excellent design and industrial appearance

· High accuracy satisfied diverse application

· Flexible design

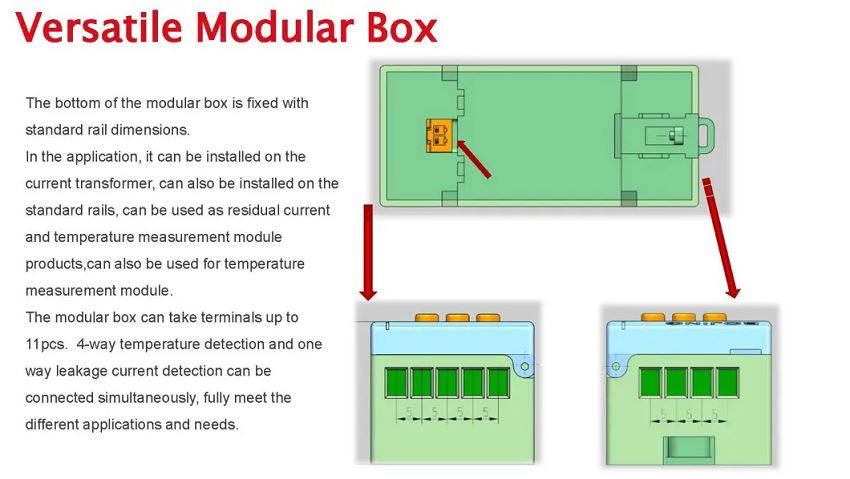

· Versatile modular box for diverse application

Mechanical Specifications

P/N	Main circuit Current  (A)	Diameter(Φ) (mm)	Dimensions(mm)			Layout dimensions(mm)
			L	W	H	D1-D2	M
LO-ZCT513102	0-100A	46	85	32	92.5	88-100	6
LO-ZCT513202	0-250A	65	108	32	118.5	109-122.5	6
LO-ZCT513302	0-315A	80	128	36	138.5	134-144	6
LO-ZCT513402	0-630A	100	150	36	160.5	152-171.5	6
LO-ZCT513502	0-800A	120	172	36	182.5	177-196.5	6

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-20ºC to 65ºC
Storage temperature range	-40ºC to 85ºC

High accuracy qualified
This series of products are on the basis of the existing mature technology, choose more high quality raw materials and combined with the optimization of the shape design, test accuracy gets strong guarantee and better than the national standard requirements: 0.5%, for special requirements,  accuracy can reach to 0.2%.

This project combines the optimal magnetic circuit design, and take full account of the necessary space requirements, so as to ensure the balance test. If necessary, the balance property can be in the specified detection conditions to achieve 5mA-50mA. Fully meet the detection circuit requirements.

At the same time, this series of products can be used for main circuit current testing, and fire power monitoring current, detection current scope from 50A-2000A, Accuracy is better than class 0.5 when secondary output at 5A .Accuracy is better than class 0.2S level when secondary output at 1A,

When measure high current , mA level weak signal can be outputed,the accuracy is better than class 0.1

Custom-made

The module box can be customized according to the customer's requirement. Or optimize the box in the original basis. We will do our best to support these optimizations.

All module boxes can be re-designed and developed according to customer needs. Even the residual current transformer can also be re-designed according to special needs of customers.

How to Order?

1. Please let us know our P/N for off-the-shelf parts. Please send us electric specifications if you need custom-made parts.

2. Proforma invoice (PI) will be sent to you.

3. Please check and confirm the PI.

4. Once we confirmed the order, please pay it soon.

5. After full payment, all goods will be sent to you in 10-15 days as usual.

6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.

'Quality first' in mind, we work closely with our customers and provide them with efficient and professional services for 12/24/35kv Big Capacity Pad Mounted Transformer. Our core competitiveness is 'internet thinking, artistic innovation, intelligent services, and popular products'. With first-class product quality and considerate service, our company maintains a sustained and stable development, and our brand awareness has increased year after year.

Hot Tags: center through current transformer, China, manufacturers, customized, quotation, low price, made in China, High Precision Zero Sequence Current Transformer, 1 2000 High Accuracy Current Transformer, Open Zero Sequence Current Transformer, Mini Split-Core Current Transformer, Current Sensor Transformerhigh Precision CT, Class 0.1 High Accuracy Transformer
