Introduciton

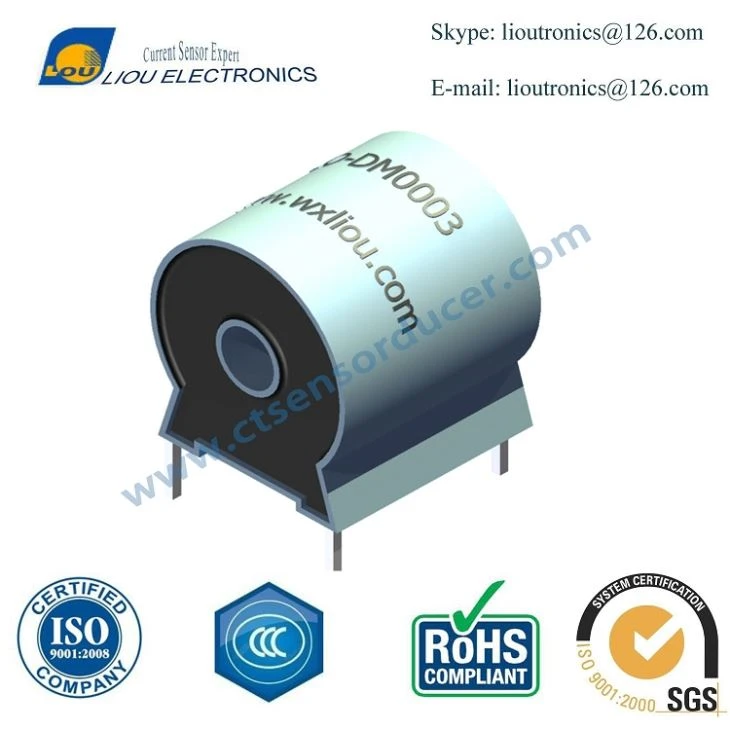

It is mainly used in various electric meters, such as electric energy meters, water meters or electric meters.  AC, pulse and current of various irregular waveforms can be measured under galvanic isolation.



Description

• 50/60 Hz,Single Phase,AC Current Sensor
• Dynamic Range from 0.1 to 4Amps
• Meets IEC 60044-1 class 0.1 Phase error < 5'
• Very low temperature coefficient
• Meets UL class B (130℃) thermal insulation system
•  Meets UL 94V-0
• AC isolation resistance: 4KV for 60s



Application

• Digital electricity meter

• Recording

• Power monitoring

• Energy management

• Alternative energy monitoring



ELECTRIC SPECIFICAITON AT 25℃
Model number	Turns Ration	Ipri4	Iout5	Iprimax6	Ioutmax7	RS	Accuracy Class3	RL8	Weight	Frequency range
		Amps	mA	Amps	mA	Ohms		Ohms	(g)	(Hz)
LO-DM0004	1:1000	2	2	4	4	TBD	0.1	100	5.0	50-60















Note:

1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.

2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.

3.Accuracy class per IEC60044-1Table 11.

4.Ipri=Rated primary current.

5.Iout=Rated secondary current.

6.Iprimax=Sensed max primary current.

7.Loutmax=Sensed max secondary current.

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following

equation R_L=Vout*Nsec/Ipri



ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40℃ to 85℃
Storage temperature range	-40℃ to 100℃
SOLDERING INFORMATION
Peak wave solder temperature	300℃ for 10Seconds
Pin finish	Tin



Mechanical Specifications
