Introduction

Split core AC current sensors have different hole sizes and current ratings to suit any application. Split core models are perfect for retrofits. Output is fixed at the industry standard.

Features

• High accuracy at 10-130% of rated current

• AC isolation resistance: 3KV for 60s

• Swing open for ease of installation

• Double secured latches per side and keying holes

• Rigid housing case with UL® 94V-0 durable plastic

• Safety standard: IEC/EN60044-1

• Nominal phase angle error and

Nominal linearity error: Conform IEC61869-2

ConformIEC60044-1

•Max.operation voltage: AC600V

Specificaiton

Item	Specificaiton
Inputs
Frequency range 50-60Hz
Accuracy range 10-130% of rated current
Outputs
output at rated current 2mA-200mA
Enviromental
Operaiton temperature range -10°C to +60°C (+14°F to +140°F)
Storage temperature range -20°C to +85°C (+4°F to +185°F)
Lead length 70 ft black/white twisted pair wire leads-22 AWG
Certifications RoHS

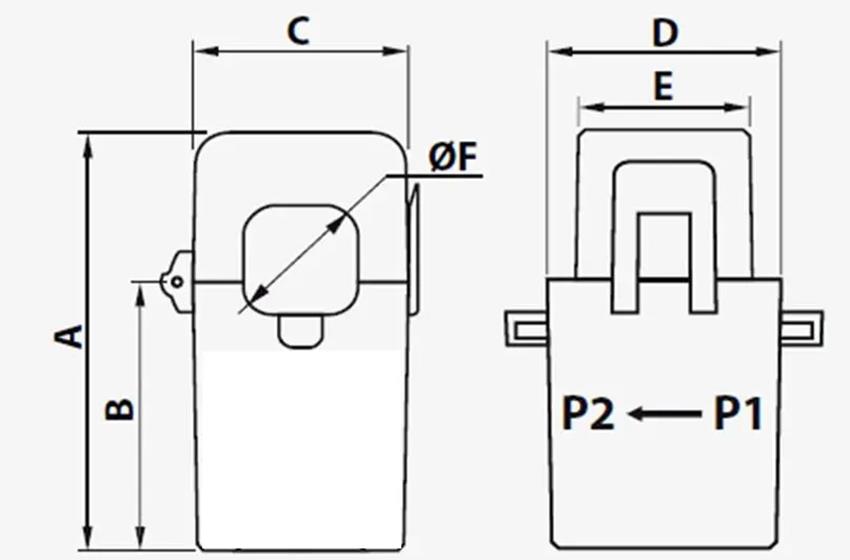

Mechanical Specificaitons

Part Number	Description	A	B	C	D	E	ΦF	Primary Rated Ampers	Weight
									g
LO-SP3010	CT 1:3000, 0.5% accuracy	40.5	24.6	22	26	14.5	10	5, 15, 30, 50, 75,80
LO-SP3016	CT 1:3000, 0.5% accuracy	44	27	29	31	19	16	50, 70, 100, 120
LO-SP3024	CT 1:3000, 0.5% accuracy	75	46	45	35	19.5	24	100, 150, 200, 300
LO-SP3036	CT 1:3000, 0.5% accuracy	91.6	58	57.4	40.9	22.8	36	300, 400, 500, 600

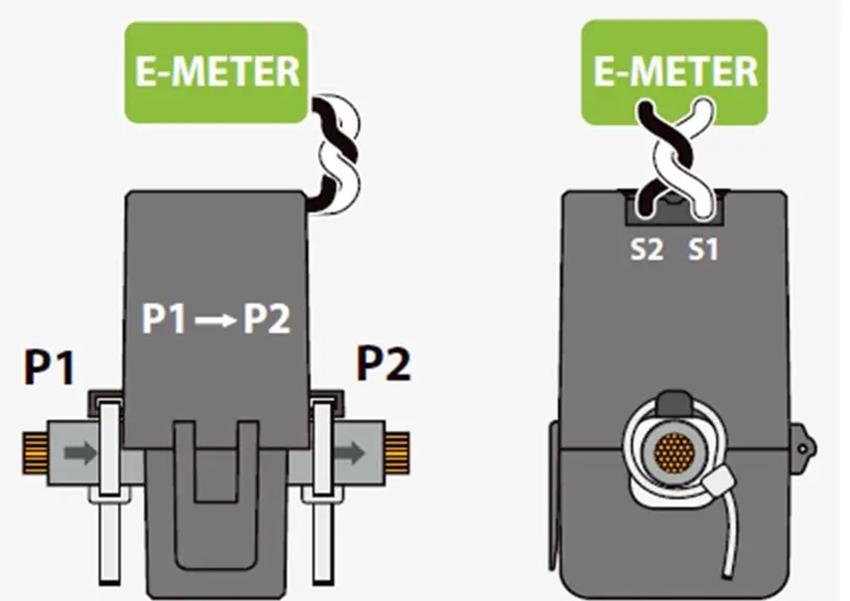

Installation

Application

● Data logging ● Recording ● Power monitoring

● Energy management ● Alternative energy monitoring ● Cost allocation
