100: 5 Three Phase Current Transformer
The three-phase current transformer combines three transformers into one body, which can reduce the volume, facilitate installation and convenient operation.
- Product Introduction
Wuxi Liou Electronics Co.,Ltd is one of the leading manufacturers and suppliers of 100: 5 three phase current transformer in China. Our factory offer high quality customized products made in China with low price. Welcome to contact us for quotation.
Three-phase current transformers
Description
The range of LiOu three-phase current transformers offers wide system current ratings, apertures, bus bar and case sizes to suit every application. Manufactured to meet EN60044 the range benefits include ratio rating from 100A to 6300A, accuracy up to Class 0.5, integral terminal cover for safety and multiple mounting options.
Application
• Data logging • Recording • Power monitoring
• Energy management • Alternative energy monitoring
• Cost allocation
Features
• Frequency Range: 50-60Hz
• Over Load withstand: 1.2 x rated current continuously
• AC isolation resistance: 3KV for 60s
• Rigid housing case with UL® 94V-0 polycarbonate
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
ConformIEC60044-1
• Max. operation voltage: AC660V
• Thermal Insulation Class: Class B
• IP Protection Class: IP20B
• Humidity: Up to 95%RH (Non-condensing)

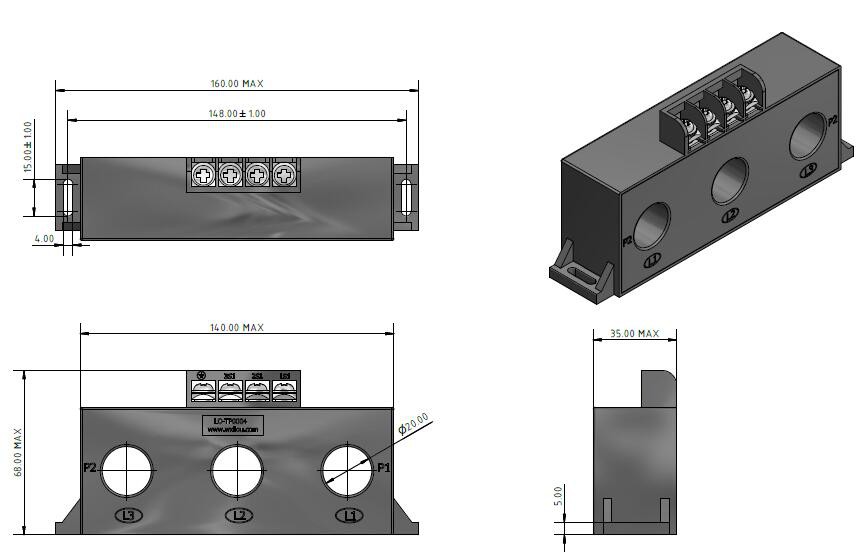

Mechanical Specification
Electric Specification
P/N | Rated ratio | Rated power (Sn) at different Accuracy Class | Short-time thermal(Ith) | Primary Turns | Weight (about) |
Class 1 | |||||
A/A | VA | A | T | kg | |
LO-TP0004 | 100/5 | 2.5 | 60xIp | 1 | 0.5 |
ABSOLUTE MAXIMUM RATINGS | |
Operating free air temperature range | -20℃ to 85℃ |
Storage temperature range | -20℃ to 60℃ |
