X0012002 3 Axis Inductive Coil Antenna 3D Coil
X0012002 3 axis inductive coil Antenna 3D coil Features: High reliability conforms to automotive applications. Encapsulated core and winding for anti-shock structure. High sensitivity due to optimized magnetic material and electrode structure. Recommended for 125 kHz ICs (low Q) Applicable to...
- Product Introduction
Wuxi Liou Electronics Co.,Ltd is one of the leading manufacturers and suppliers of x0012002 3 axis inductive coil antenna 3d coil in China. Our factory offer high quality customized products made in China with low price. Welcome to contact us for quotation.
X0012002 3 axis inductive coil Antenna 3D coil
Features:
High reliability conforms to automotive applications.
Encapsulated core and winding for anti-shock structure.
High sensitivity due to optimized magnetic material and electrode structure.
Recommended for 125 kHz ICs (low Q)
Applicable to reflow soldering.
AEC-Q200 compliant.
Applications:
Suitable as a Transponder Antenna Coil for Remote Keyless Entry System. (Vehicle application)
Wide operating temperature range: −40°C to +125°C
Electric Specification
|
X axis |
||||
|
线圈电感 L(mH) |
品质因素 Qtyp |
直流电阻 Rdc(ohm) typ |
自谐频率 SRF(KHz) min |
灵敏度 Sensitivity (mVpp/μT) typ |
|
7.2±5% |
28 |
90 |
290 |
81 |
|
Y axis |
||||
|
线圈电感 L(mH) |
品质因素 Qtyp |
直流电阻 Rdc(ohm) typ |
自谐频率 SRF(KHz) min |
灵敏度 Sensitivity (mVpp/μT) typ |
|
7.2±5% |
26 |
95 |
290 |
85 |
|
Z axis |
||||
|
线圈电感 L(mH) |
品质因素 Qtyp |
直流电阻 Rdc(ohm) typ |
自谐频率 SRF(KHz) min |
灵敏度 Sensitivity (mVpp/μT) typ |
|
10±5% |
30 |
160 |
450 |
94 |
|
Notes: LCR 测试仪 @ 125 kHz, 1Vac /25°C |
||||
|
工作频率 |
125KHz |
|||
|
工作温度范围 |
-40°C - +85°C |
|||
|
储存温度范围 |
-40°C - +85°C |
|||

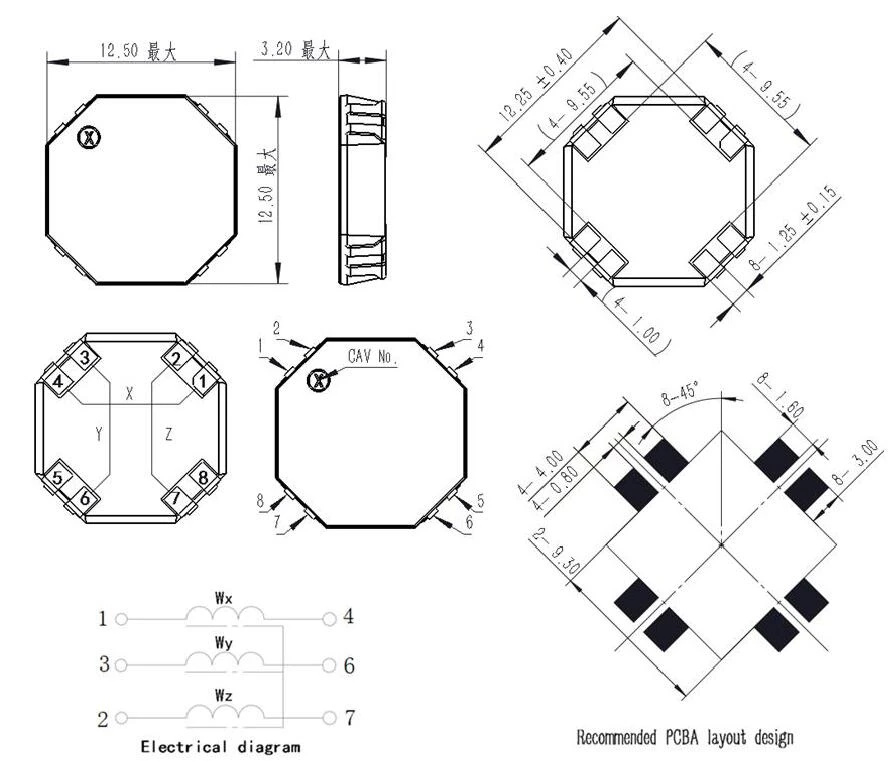

Dimension and recommend PCB layout ( unit: mm)
