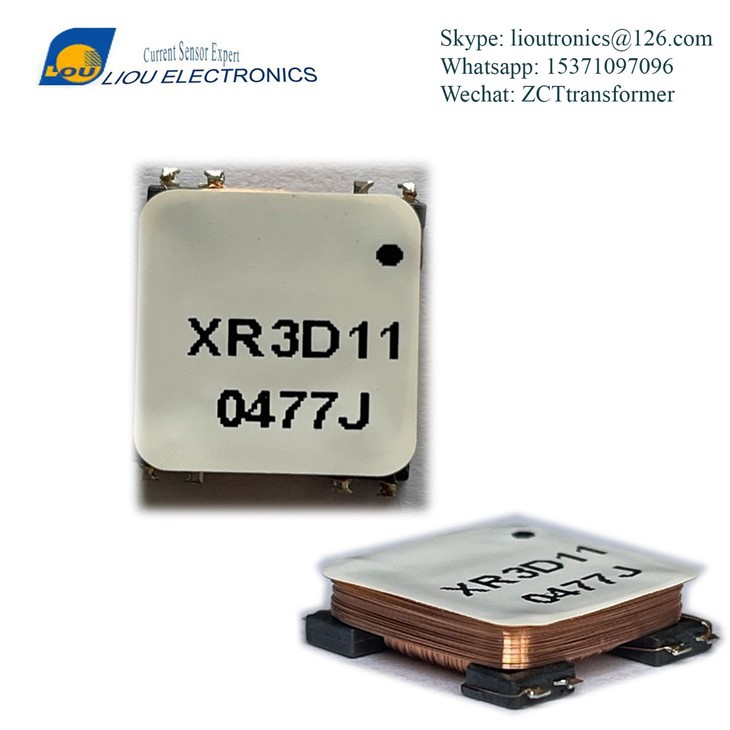

XR3D110477J SMD 3D COIL ANTENNA 3DC11LP PREMO SUBSTITUTE

Wuxi Liou Electronics Co.,Ltd is one of the leading manufacturers and suppliers of xr3d110477j smd 3d coil antenna 3dc11lp premo substitute in China. Our factory offer high quality customized products made in China with low price. Welcome to contact us for quotation.



SMD 3-AXIS TRANSPONDER INDUCTOR (3 INDUCTIVE COILS)





Features:



• Offers 3cois. oriented in the 3space axes. Assembled in a single component with full functional
• Suitable for automotive applications (Keyless Entry Systems, RTPMS). etc.
• Very good electrical performance in the smallest dimensions.
• High stability in temperature (-40°C to +125°C).
• High sensitivity values.
• The inductivity in each axis can be customized to achieve customer requirements.



Applications:



• Automotive Passive keyless entry systems.
• Automotive RTPMS with wake up functions.
• Industrial logistics and control.
• Access control.
• Tracking devices.



Electric specifications:



S/N	Description	Electrical specifications
1	Inductance 3-7@125KHz，1 Vac/ 20℃	4.77mH±5%
2	Inductance 1-5@125KHz，1 Vac/ 20℃	4.77mH±5%
3	Inductance 4-8@125KHz，1 Vac/ 20℃	4.77mH±5%
4	Quality factor QX,QY,QZ	15Min
5	Operation temperature	-40 ºC - +85 ºC
6	Storage temperature	-40 ºC - +85 ºC

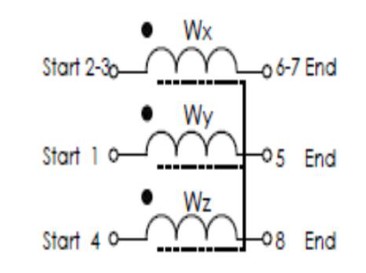

Schematic diagram:





Dimensions and layout:

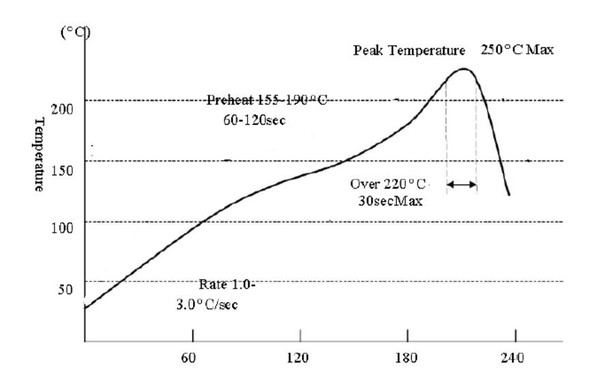

Recommended reflow chart:
