High Current DC Immune Current Transducer
The DC Immune Current Transformer (CT) is a specialized device designed primarily for the detection of alternating current (AC) while remaining immune to the effects of direct current (DC). This functionality is particularly important in applications where AC signals need to be measured without interference from any DC components. Utilizing advanced magnetic core materials and innovative design, the DC Immune CT ensures high accuracy and reliability in AC current measurement, making it an essential tool for effective monitoring and control in various electrical systems.
- Product Introduction
Wuxi Liou Electronics Co.,Ltd is one of the leading manufacturers and suppliers of high current dc immune current transducer in China. Our factory offer high quality customized products made in China with low price. Welcome to contact us for quotation.
Introduction
The DC Immune Current Transformer (CT) is a specialized device designed primarily for the detection of alternating current (AC) while remaining immune to the effects of direct current (DC). This functionality is particularly important in applications where AC signals need to be measured without interference from any DC components. Utilizing advanced magnetic core materials and innovative design, the DC Immune CT ensures high accuracy and reliability in AC current measurement, making it an essential tool for effective monitoring and control in various electrical systems.
Description
- 50/60 Hz,Single Phase,AC Current Sensor
- Dynamic Range from 5 to 80Amps
- Meets IEC 60044-1/IEC61869-2 Class 0.1/0.2
- Immune to external AC magnetic field. Immune to DC current & DC magnetic field
- Very low temperature coefficient
- Meets UL class B (130ºC) thermal insulation system
- Meets UL 94V-0
- AC isolation resistance: 4KV for 60s
- Resistant to DC component :≤±3%
|
ELECTRIC SPECIFICAITON AT 25℃ |
||||||||||
|
Model number |
Turns Ration |
Ipri4 |
Iout5 |
Iprimax6 |
Ioutmax7 |
Resistant to DC component |
Accuracy Class3 |
RL8 |
Magnetic shield |
Frequency range |
|
Amps |
mA |
Amps |
mA |
% |
|
Ohms |
Tesla |
(Hz) |
||
|
LO-ADC722DT |
1:2500 |
5 |
2 |
60 |
24 |
≤±3% |
0.1/0.2 |
5-20 |
300mT |
50-60 |
|
1:2000 |
5 |
2.5 |
60 |
30 |
||||||
|
1:2500 |
10 |
4 |
60 |
24 |
≤±3% |
|||||
|
1:2000 |
10 |
5 |
60 |
30 |
||||||
|
1:1000 |
10 |
10 |
60 |
60 |
||||||
|
1:2500 |
5 |
2 |
80 |
32 |
≤±3% |
|||||
|
1:2500 |
10 |
4 |
80 |
32 |
||||||
|
1:2000 |
20 |
10 |
100 |
50 |
||||||
Note
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.
8.RL=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation RL=Vout*Nsec/Ipri
|
ABSOLUTE MAXIMUM RATINGS |
|
|
Operating free air temperature range |
-40ºC to 85ºC |
|
Storage temperature range |
-40ºC to 100ºC |
|
LEADS INFORMATION |
|
|
24AWG UL1569 Lead wires |
Leads length:L±5mm |
|
Stripped and tinned |
L1+1/-0mm |

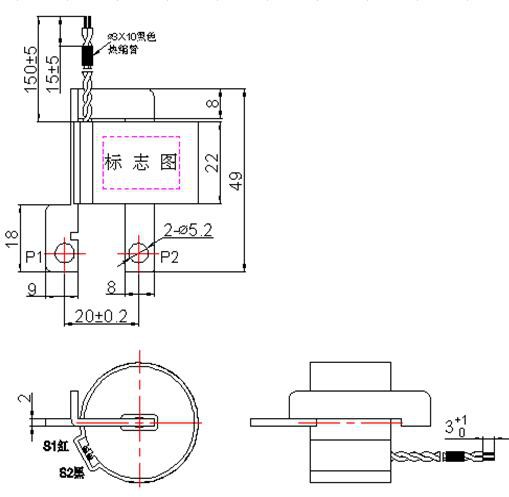

Mechanical specificaiton
Wuxi Liou Electronics Co Ltd
